At the dawn of quantum theory, Heisenberg, Schrödinger, Bohr and Pauli were embroiled in a dispute over whether trajectories of particles, defined by their positions over time, could exist. The argument against trajectories was based on an apparent paradox: To draw a “line” depicting a trajectory of a particle along a path implies that there is a momentum vector that carries the particle along that path. But a line is a one-dimensional curve through space, and since at any point in time the particle’s position is perfectly localized, then by Heisenberg’s uncertainty principle, it can have no definable momentum to carry it along.

My previous blog shows the way out of this paradox, by assembling wavepackets that are spread in both space and momentum, explicitly obeying the uncertainty principle. This is nothing new to anyone who has taken a quantum course. But the surprising thing is that in some potentials, like a harmonic potential, the wavepacket travels without broadening, just like classical particles on a trajectory. A dramatic demonstration of this can be seen in this YouTube video. But other potentials “break up” the wavepacket, especially potentials that display classical chaos. Because phase space is one of the best tools for studying classical chaos, especially Hamiltonian chaos, it can be enlisted to dig deeper into the question of the quantum trajectory—not just about the existence of a quantum trajectory, but why quantum systems retain a shadow of their classical counterparts.

Phase Space

Phase space is the state space of Hamiltonian systems. Concepts of phase space were first developed by Boltzmann as he worked on the problem of statistical mechanics. Phase space was later codified by Gibbs for statistical mechanics and by Poincare for orbital mechanics, and it was finally given its name by Paul and Tatiana Ehrenfest (a husband-wife team) in correspondence with the German physicist Paul Hertz (See Chapter 6, “The Tangled Tale of Phase Space”, in Galileo Unbound by D. D. Nolte (Oxford, 2018)).

The stretched-out phase-space functions … are very similar to the stochastic layer that forms in separatrix chaos in classical systems.

The idea of phase space is very simple for classical systems: it is just a plot of the momentum of a particle as a function of its position. For a given initial condition, the trajectory of a particle through its natural configuration space (for instance our 3D world) is traced out as a path through phase space. Because there is one momentum variable per degree of freedom, then the dimensionality of phase space for a particle in 3D is 6D, which is difficult to visualize. But for a one-dimensional dynamical system, like a simple harmonic oscillator (SHO) oscillating in a line, the phase space is just two-dimensional, which is easy to see. The phase-space trajectories of an SHO are simply ellipses, and if the momentum axis is scaled appropriately, the trajectories are circles. The particle trajectory in phase space can be animated just like a trajectory through configuration space as the position and momentum change in time p(x(t)). For the SHO, the point follows the path of a circle going clockwise.

*Fig. 1 Phase space of the simple harmonic oscillator. The “orbits” have constant energy.*

A more interesting phase space is for the simple pendulum, shown in Fig. 2. There are two types of orbits: open and closed. The closed orbits near the origin are like those of a SHO. The open orbits are when the pendulum is spinning around. The dividing line between the open and closed orbits is called a separatrix. Where the separatrix intersects itself is a saddle point. This saddle point is the most important part of the phase space portrait: it is where chaos emerges when perturbations are added.

Fig. 2 Phase space for a simple pendulum. For small amplitudes the orbits are closed like those of a SHO. For large amplitudes the orbits become open as the pendulum spins about its axis. (Reproduced from Introduction to Modern Dynamics, 2nd Ed., pg. )

One route to classical chaos is through what is known as “separatrix chaos”. It is easy to see why saddle points (also known as hyperbolic points) are the source of chaos: as the system trajectory approaches the saddle, it has two options of which directions to go. Any additional degree of freedom in the system (like a harmonic drive) can make the system go one way on one approach, and the other way on another approach, mixing up the trajectories. An example of the stochastic layer of separatrix chaos is shown in Fig. 3 for a damped driven pendulum. The chaotic behavior that originates at the saddle point extends out along the entire separatrix.

*Fig. 3 The stochastic layer of separatrix chaos for a damped driven pendulum. (Reproduced from Introduction to Modern Dynamics, 2nd Ed., pg. )*

The main question about whether or not there is a quantum trajectory depends on how quantum packets behave as they approach a saddle point in phase space. Since packets are spread out, it would be reasonable to assume that parts of the packet will go one way, and parts of the packet will go another. But first, one has to ask: Is a phase-space description of quantum systems even possible?

Quantum Phase Space: The Wigner Distribution Function

Phase-space portraits are arguably the most powerful tool in the toolbox of classical dynamics, and one would like to retain its uses for quantum systems. However, there is that pesky paradox about quantum trajectories that cannot admit the existence of one-dimensional curves through such a phase space. Furthermore, there is no direct way of taking a wavefunction and simply “finding” its position or momentum to plot points on such a quantum phase space.

The answer was found in 1932 by Eugene Wigner (1902 – 1905), an Hungarian physicist working at Princeton. He realized that it was impossible to construct a quantum probability distribution in phase space that had positive values everywhere. This is a problem, because negative probabilities have no direct interpretation. But Wigner showed that if one relaxed the requirements a bit, so that expectation values computed over some distribution function (that had positive and negative values) gave correct answers that matched experiments, then this distribution function would “stand in” for an actual probability distribution.

The distribution function that Wigner found is called the Wigner distribution function. Given a wavefunction ψ(x), the Wigner distribution is defined as

*Fig. 4 Wigner distribution function in (x, p) phase space.*

The Wigner distribution function is the Fourier transform of the convolution of the wavefunction. The pure position dependence of the wavefunction is converted into a spread-out position-momentum function in phase space. For a Gaussian wavefunction ψ(x) with a finite width in space, the W-function in phase space is a two-dimensional Gaussian with finite widths in both space and momentum. In fact, the Δx-Δp product of the W-function is precisely the uncertainty production of the Heisenberg uncertainty relation.

The question of the quantum trajectory from the phase-space perspective becomes whether a Wigner function behaves like a localized “packet” that evolves in phase space in a way analogous to a classical particle, and whether classical chaos is reflected in the behavior of quantum systems.

The Harmonic Oscillator

The quantum harmonic oscillator is a rare and special case among quantum potentials, because the energy spacings between all successive states are all the same. This makes it possible for a Gaussian wavefunction, which is a superposition of the eigenstates of the harmonic oscillator, to propagate through the potential without broadening. To see an example of this, watch the first example in this YouTube video for a Schrödinger cat state in a two-dimensional harmonic potential. For this very special potential, the Wigner distribution behaves just like a (broadened) particle on an orbit in phase space, executing nice circular orbits.

A comparison of the classical phase-space portrait versus the quantum phase-space portrait is shown in Fig. 5. Where the classical particle is a point on an orbit, the quantum particle is spread out, obeying the Δx-Δp Heisenberg product, but following the same orbit as the classical particle.

Fig. 5 Classical versus quantum phase-space portraits for a harmonic oscillator. For a classical particle, the trajectory is a point executing an orbit. For a quantum particle, the trajectory is a Wigner distribution that follows the same orbit as the classical particle.

However, a significant new feature appears in the Wigner representation in phase space when there is a coherent superposition of two states, known as a “cat” state, after Schrödinger’s cat. This new feature has no classical analog. It is the coherent interference pattern that appears at the zero-point of the harmonic oscillator for the Schrödinger cat state. There is no such thing as “classical” coherence, so this feature is absent in classical phase space portraits.

Two examples of Wigner distributions are shown in Fig. 6 for a statistical (incoherent) mixture of packets and a coherent superposition of packets. The quantum coherence signature is present in the coherent case but not the statistical mixture case. The coherence in the Wigner distribution represents “off-diagonal” terms in the density matrix that leads to interference effects in quantum systems. Quantum computing algorithms depend critically on such coherences that tend to decay rapidly in real-world physical systems, known as decoherence, and it is possible to make statements about decoherence by watching the zero-point interference.

Fig. 6 Quantum phase-space portraits of double wave packets. On the left, the wave packets have no coherence, being a statistical mixture. On the right is the case for a coherent superposition, or “cat state” for two wave packets in a one-dimensional harmonic oscillator.

Whereas Gaussian wave packets in the quantum harmonic potential behave nearly like classical systems, and their phase-space portraits are almost identical to the classical phase-space view (except for the quantum coherence), most quantum potentials cause wave packets to disperse. And when saddle points are present in the classical case, then we are back to the question about how quantum packets behave as they approach a saddle point in phase space.

Quantum Pendulum and Separatrix Chaos

One of the simplest anharmonic oscillators is the simple pendulum. In the classical case, the period diverges if the pendulum gets very close to going vertical. A similar thing happens in the quantum case, but because the motion has strong anharmonicity, an initial wave packet tends to spread dramatically as parts of the wavefunction less vertical stretch away from the part of the wave function that is more nearly vertical. Fig. 7 is a snap-shot about a eighth of a period after the wave packet was launched. The packet has already stretched out along the separatrix. A double-cat-state was used, so there is a second packet that has coherent interference with the first. To see a movie of the time evolution of the wave packet and the orbit in quantum phase space, see the YouTube video.

Fig. 7 Wavefunction of a quantum pendulum released near vertical. The phase-space portrait is very similar to the classical case, except that the phase-space distribution is stretched out along the separatrix. The initial state for the phase-space portrait was a cat state.

The simple pendulum does have a saddle point, but it is degenerate because the angle is modulo -2-pi. A simple potential that has a non-degenerate saddle point is a double-well potential.

Quantum Double-Well and Separatrix Chaos

The symmetric double-well potential has a saddle point at the mid-point between the two well minima. A wave packet approaching the saddle will split into to packets that will follow the individual separatrixes that emerge from the saddle point (the unstable manifolds). This effect is seen most dramatically in the middle pane of Fig. 8. For the full video of the quantum phase-space evolution, see this YouTube video. The stretched-out distribution in phase space is highly analogous to the separatrix chaos seen for the classical system.

Fig. 8 Phase-space portraits of the Wigner distribution for a wavepacket in a double-well potential. The packet approaches the central saddle point, where the probability density splits along the unstable manifolds.

Conclusion

A common statement often made about quantum chaos is that quantum systems tend to suppress chaos, only exhibiting chaos for special types of orbits that produce quantum scars. However, from the phase-space perspective, the opposite may be true. The stretched-out Wigner distribution functions, for critical wave packets that interact with a saddle point, are very similar to the stochastic layer that forms in separatrix chaos in classical systems. In this sense, the phase-space description brings out the similarity between classical chaos and quantum chaos.

By David D. Nolte Sept. 25, 2022

YouTube Video

YouTube Video of Dynamics in Quantum Phase Space

References

1. T. Curtright, D. Fairlie, C. Zachos, A Concise Treatise on Quantum Mechanics in Phase Space. (World Scientific, New Jersey, 2014).

2. J. R. Nagel, A Review and Application of the Finite-Difference Time-Domain Algorithm Applied to the Schrödinger Equation, ACES Journal, Vol. 24, NO. 1, pp. 1-8 (2009)

August 14, 2022March 19, 2023 by David D. Nolte

Quantum Chaos and the Cheshire Cat

Alice’s disturbing adventures in Wonderland tumbled upon her like a string of accidents as she wandered a world of chaos. Rules were never what they seemed and shifted whenever they wanted. She even met a cat who grinned ear-to-ear and could disappear entirely, or almost entirely, leaving only its grin.

The vanishing Cheshire Cat reminds us of another famous cat—Arnold’s Cat—that introduced the ideas of stretching and folding of phase-space volumes in non-integrable Hamiltonian systems. But when Arnold’s Cat becomes a Quantum Cat, a central question remains: What happens to the chaotic behavior of the classical system … does it survive the transition to quantum mechanics? The answer is surprisingly like the grin of the Cheshire Cat—the cat vanishes, but the grin remains. In the quantum world of the Cheshire Cat, the grin of the classical cat remains even after the rest of the cat vanished.

The Cheshire Cat fades away, leaving only its grin, like a fine filament, as classical chaos fades into quantum, leaving behind a quantum scar.

The Quantum Mechanics of Classically Chaotic Systems

The simplest Hamiltonian systems are integrable—they have as many constants of the motion as degrees of freedom. This holds for quantum systems as well as for classical. There is also a strong correspondence between classical and quantum systems for the integrable cases—literally the Correspondence Principle—that states that quantum systems at high quantum number approach classical behavior. Even at low quantum numbers, classical resonances are mirrored by quantum eigenfrequencies that can show highly regular spectra.

But integrable systems are rare—surprisingly rare. Almost no real-world Hamiltonian system is integrable, because the real world warps the ideal. No spring can displace indefinitely, and no potential is perfectly quadratic. There are always real-world non-idealities that destroy one constant of the motion or another, opening the door to chaos.

When classical Hamiltonian systems become chaotic, they don’t do it suddenly. Almost all transitions to chaos in Hamiltonian systems are gradual. One of the best examples of this is the KAM theory that starts with invariant action integrals that generate invariant tori in phase space. As nonintegrable perturbations increase, the tori break up slowly into island chains of stability as chaos infiltrates the separatrixes—first as thin filaments of chaos surrounding the islands—then growing in width to take up more and more of phase space. Even when chaos is fully developed, small islands of stability can remain—the remnants of stable orbits of the unperturbed system.

When the classical becomes quantum, chaos softens. Quantum wave functions don’t like to be confined—they spread and they tunnel. The separatrix of classical chaos—that barrier between regions of phase space—cannot constrain the exponential tails of wave functions. And the origin of chaos itself—the homoclinic point of the separatrix—gets washed out. Then the regular orbits of the classical system reassert themselves, and they appear, like the vestige of the Cheshire Cat, as a grin.

The Quantum Circus

The empty stadium is a surprisingly rich dynamical system that has unexpected structure in both the classical and the quantum domain. Its importance in classical dynamics comes from the fact that its periodic orbits are unstable and its non-periodic orbits are ergodic (filling all available space if given long enough). The stadium itself is empty so that particles (classical or quantum) are free to propagate between reflections from the perfectly-reflecting walls of the stadium. The ergodicity comes from the fact that the stadium—like a classic Roman chariot-race stadium, also known as a circus—is not a circle, but has a straight stretch between two half circles. This simple modification takes the stable orbits of the circle into the unstable orbits of the stadium.

A single classical orbit in a stadium is shown in Fig 1. This is an ergodic orbit that is non-periodic and eventually would fill the entire stadium space. There are other orbits that are nearly periodic, such as one that bounces back and forth vertically between the linear portions, but even this orbit will eventually wander into the circular part of the stadium and then become ergodic. The big quantum-classical question is what happens to these classical orbits when the stadium is shrunk to the nanoscale?

Fig. 1 A classical trajectory in a stadium. It will eventually visit every point, a property known as ergodicity.

Simulating an evolving quantum wavefunction in free space is surprisingly simple. Given a beginning quantum wavefunction A(x,y,t₀), the discrete update equation is

Perfect reflection from the boundaries of the stadium are incorporated through imposing a boundary condition that sends the wavefunction to zero. Simple!

A snap-shot of a wavefunction evolving in the stadium is shown in Fig. 2. To see a movie of the time evolution, see my YouTube episode.

Fig. 2 Snapshot of a quantum wavefunction in the stadium. (From YouTube)

The time average of the wavefunction after a long time has passed is shown in Fig. 3. Other than the horizontal nodal line down the center of the stadium, there is little discernible structure or symmetry. This is also true for the mean squared wavefunction shown in Fig. 4, although there is some structure that may be emerging in the semi-circular regions.

Fig. 3 Time-average wavefunction after a long time.

Fig. 4 Time-average of the squared wavefunction after a long time.

On the other hand, for special initial conditions that have a lot of symmetry, something remarkable happens. Fig. 5 shows several mean-squared results for special initial conditions. There is definite structure in these cases that were given the somewhat ugly name “quantum scars” in the 1980’s by Eric Heller who was one of the first to study this phenomenon [1].

Fig. 5 Quantum scars reflect periodic (but unstable) orbits of the classical system. Quantum effects tend to quench chaos and favor regular motion.

One can superpose highly-symmetric classical trajectories onto the figures, as shown in the bottom row. All of these classical orbits go through a high-symmetry point, such as the center of the stadium (on the left image) and through the focal point of the circular mirrors (in the other two images). The astonishing conclusion of this exercise is that the highly-symmetric periodic classical orbits remain behind as quantum scars—like the Cheshire Cat’s grin—when the system is in the quantum realm. The classical orbits that produce quantum scars have the important property of being periodic but unstable. A slight perturbation from the symmetric trajectory causes it to eventually become ergodic (chaotic). These scars are regions with enhanced probability density, what might be termed “quantum trajectories”, but do not show strong interference patterns.

It is important to make the distinction that it is also possible to construct special wavefunctions that are strictly periodic, such as a wave bouncing perfectly vertically between the straight portions. This leads to large-scale interference patterns that are not the same as the quantum scars.

Quantum Chaos versus Laser Speckle

In addition to the bouncing-wave cases that do not strictly produce quantum scars, there is another “neutral” phenomenon that produces interference patterns that look a lot like scars, but are simply the random addition of lots of plane waves with the same wavelength [2]. A snapshot in time of one of these superpositions is shown in Fig. 6. To see how the waves add together, see the YouTube channel episode.

Fig. 6 The sum of 100 randomly oriented plane waves of constant wavelength. (A snapshot from YouTube.)

By David D. Nolte, Aug. 14, 2022

YouTube Video

YouTube Video of Quantum Chaos

References

[1] Heller E J, Bound-state eigenfunctions of classically chaotic hamiltonian-systems – scars of periodic-orbits, Physical Review Letters 53 ,1515 (1984)

[2] Gutzwiller M C, Chaos in classical and quantum mechanics (New York: New York : Springer-Verlag, 1990)

September 30, 2019April 27, 2021 by David D. Nolte

Science 1916: Schwarzschild, Einstein, Planck, Born, Frobenius et al.

In one of my previous blog posts, as I was searching for Schwarzschild’s original papers on Einstein’s field equations and quantum theory, I obtained a copy of the January 1916 – June 1916 volume of the Proceedings of the Royal Prussian Academy of Sciences through interlibrary loan. The extremely thick volume arrived at Purdue about a week after I ordered it online. It arrived from Oberlin College in Ohio that had received it as a gift in 1928 from the library of Professor Friedrich Loofs of the University of Halle in Germany. Loofs had been the Haskell Lecturer at Oberlin for the 1911-1912 semesters.

As I browsed through the volume looking for Schwarzschild’s papers, I was amused to find a cornucopia of turn-of-the-century science topics recorded in its pages. There were papers on the overbite and lips of marsupials. There were papers on forgotten languages. There were papers on ancient Greek texts. On the origins of religion. On the philosophy of abstraction. Histories of Indian dramas. Reflections on cancer. But what I found most amazing was a snapshot of the field of physics and mathematics in 1916, with historic papers by historic scientists who changed how we view the world. Here is a snapshot in time and in space, a period of only six months from a single journal, containing papers from authors that reads like a who’s who of physics.

In 1916 there were three major centers of science in the world with leading science publications: London with the Philosophical Magazine and Proceedings of the Royal Society; Paris with the Comptes Rendus of the Académie des Sciences; and Berlin with the Proceedings of the Royal Prussian Academy of Sciences and Annalen der Physik. In Russia, there were the scientific Journals of St. Petersburg, but the Bolshevik Revolution was brewing that would overwhelm that country for decades. And in 1916 the academic life of the United States was barely worth noticing except for a few points of light at Yale and Johns Hopkins.

Berlin in 1916 was embroiled in war, but science proceeded relatively unmolested. The six-month volume of the Proceedings of the Royal Prussian Academy of Sciences contains a number of gems. Schwarzschild was one of the most prolific contributors, publishing three papers in just this half-year volume, plus his obituary written by Einstein. But joining Schwarzschild in this volume were Einstein, Planck, Born, Warburg, Frobenious, and Rubens among others—a pantheon of German scientists mostly cut off from the rest of the world at that time, but single-mindedly following their individual threads woven deep into the fabric of the physical world.

Karl Schwarzschild (1873 – 1916)

Schwarzschild had the unenviable yet effective motivation of his impending death to spur him to complete several projects that he must have known would make his name immortal. In this six-month volume he published his three most important papers. The first (pg. 189) was on the exact solution to Einstein’s field equations to general relativity. The solution was for the restricted case of a point mass, yet the derivation yielded the Schwarzschild radius that later became known as the event horizon of a non-roatating black hole. The second paper (pg. 424) expanded the general relativity solutions to a spherically symmetric incompressible liquid mass.

Schwarzschild’s solution to Einstein’s field equations for a point mass.

Schwarzschild’s extension of the field equation solutions to a finite incompressible fluid.

The subject, content and success of these two papers was wholly unexpected from this observational astronomer stationed on the Russian Front during WWI calculating trajectories for German bombardments. He would not have been considered a theoretical physicist but for the importance of his results and the sophistication of his methods. Within only a year after Einstein published his general theory, based as it was on the complicated tensor calculus of Levi-Civita, Christoffel and Ricci-Curbastro that had taken him years to master, Schwarzschild found a solution that evaded even Einstein.

Schwarzschild’s third and final paper (pg. 548) was on an entirely different topic, still not in his official field of astronomy, that positioned all future theoretical work in quantum physics to be phrased in the language of Hamiltonian dynamics and phase space. He proved that action-angle coordinates were the only acceptable canonical coordinates to be used when quantizing dynamical systems. This paper answered a central question that had been nagging Bohr and Einstein and Ehrenfest for years—how to quantize dynamical coordinates. Despite the simple way that Bohr’s quantized hydrogen atom is taught in modern physics, there was an ambiguity in the quantization conditions even for this simple single-electron atom. The ambiguity arose from the numerous possible canonical coordinate transformations that were admissible, yet which led to different forms of quantized motion.

Schwarzschild’s proposal of action-angle variables for quantization of dynamical systems.

Schwarzschild’s doctoral thesis had been a theoretical topic in astrophysics that applied the celestial mechanics theories of Henri Poincaré to binary star systems. Within Poincaré’s theory were integral invariants that were conserved quantities of the motion. When a dynamical system had as many constraints as degrees of freedom, then every coordinate had an integral invariant. In this unexpected last paper from Schwarzschild, he showed how canonical transformation to action-angle coordinates produced a unique representation in terms of action variables (whose dimensions are the same as Planck’s constant). These action coordinates, with their associated cyclical angle variables, are the only unambiguous representations that can be quantized. The important points of this paper were amplified a few months later in a publication by Schwarzschild’s friend Paul Epstein (1871 – 1939), solidifying this approach to quantum mechanics. Paul Ehrenfest (1880 – 1933) continued this work later in 1916 by defining adiabatic invariants whose quantum numbers remain unchanged under slowly varying conditions, and the program started by Schwarzschild was definitively completed by Paul Dirac (1902 – 1984) at the dawn of quantum mechanics in Göttingen in 1925.

Albert Einstein (1879 – 1955)

In 1916 Einstein was mopping up after publishing his definitive field equations of general relativity the year before. His interests were still cast wide, not restricted only to this latest project. In the 1916 Jan. to June volume of the Prussian Academy Einstein published two papers. Each is remarkably short relative to the other papers in the volume, yet the importance of the papers may stand in inverse proportion to their length.

The first paper (pg. 184) is placed right before Schwarzschild’s first paper on February 3. The subject of the paper is the expression of Maxwell’s equations in four-dimensional space time. It is notable and ironic that Einstein mentions Hermann Minkowski (1864 – 1909) in the first sentence of the paper. When Minkowski proposed his bold structure of spacetime in 1908, Einstein had been one of his harshest critics, writing letters to the editor about the absurdity of thinking of space and time as a single interchangeable coordinate system. This is ironic, because Einstein today is perhaps best known for the special relativity properties of spacetime, yet he was slow to adopt the spacetime viewpoint. Einstein only came around to spacetime when he realized around 1910 that a general approach to relativity required the mathematical structure of tensor manifolds, and Minkowski had provided just such a manifold—the pseudo-Riemannian manifold of space time. Einstein subsequently adopted spacetime with a passion and became its greatest champion, calling out Minkowski where possible to give him his due, although he had already died tragically of a burst appendix in 1909.

Relativistic energy density of electromagnetic fields.

The importance of Einstein’s paper hinges on his derivation of the electromagnetic field energy density using electromagnetic four vectors. The energy density is part of the source term for his general relativity field equations. Any form of energy density can warp spacetime, including electromagnetic field energy. Furthermore, the Einstein field equations of general relativity are nonlinear as gravitational fields modify space and space modifies electromagnetic fields, producing a coupling between gravity and electromagnetism. This coupling is implicit in the case of the bending of light by gravity, but Einstein’s paper from 1916 makes the connection explicit.

Einstein’s second paper (pg. 688) is even shorter and hence one of the most daring publications of his career. Because the field equations of general relativity are nonlinear, they are not easy to solve exactly, and Einstein was exploring approximate solutions under conditions of slow speeds and weak fields. In this “non-relativistic” limit the metric tensor separates into a Minkowski metric as a background on which a small metric perturbation remains. This small perturbation has the properties of a wave equation for a disturbance of the gravitational field that propagates at the speed of light. Hence, in the June 22 issue of the Prussian Academy in 1916, Einstein predicts the existence and the properties of gravitational waves. Exactly one hundred years later in 2016, the LIGO collaboration announced the detection of gravitational waves generated by the merger of two black holes.

Einstein’s weak-field low-velocity approximation solutions of his field equations.

Einstein’s prediction of gravitational waves.

Max Planck (1858 – 1947)

Max Planck was active as the secretary of the Prussian Academy in 1916 yet was still fully active in his research. Although he had launched the quantum revolution with his quantum hypothesis of 1900, he was not a major proponent of quantum theory even as late as 1916. His primary interests lay in thermodynamics and the origins of entropy, following the theoretical approaches of Ludwig Boltzmann (1844 – 1906). In 1916 he was interested in how to best partition phase space as a way to count states and calculate entropy from first principles. His paper in the 1916 volume (pg. 653) calculated the entropy for single-atom solids.

Max Born (1882 – 1970)

Max Born was to be one of the leading champions of the quantum mechanical revolution based at the University of Göttingen in the 1920’s. But in 1916 he was on leave from the University of Berlin working on ranging for artillery. Yet he still pursued his academic interests, like Schwarzschild. On pg. 614 in the Proceedings of the Prussian Academy, Born published a paper on anisotropic liquids, such as liquid crystals and the effect of electric fields on them. It is astonishing to think that so many of the flat-panel displays we have today, whether on our watches or smart phones, are technological descendants of work by Born at the beginning of his career.

Ferdinand Frobenius (1849 – 1917)

Like Schwarzschild, Frobenius was at the end of his career in 1916 and would pass away one year later, but unlike Schwarzschild, his career had been a long one, receiving his doctorate under Weierstrass and exploring elliptic functions, differential equations, number theory and group theory. One of the papers that established him in group theory appears in the May 4^th issue on page 542 where he explores the series expansion of a group.

Heinrich Rubens (1865 – 1922)

Max Planck owed his quantum breakthrough in part to the exquisitely accurate experimental measurements made by Heinrich Rubens on black body radiation. It was only by the precise shape of what came to be called the Planck spectrum that Planck could say with such confidence that his theory of quantized radiation interactions fit Rubens spectrum so perfectly. In 1916 Rubens was at the University of Berlin, having taken the position vacated by Paul Drude in 1906. He was a specialist in infrared spectroscopy, and on page 167 of the Proceedings he describes the spectrum of steam and its consequences for the quantum theory.

Rubens and the infrared spectrum of steam.

Emil Warburg (1946 – 1931)

Emil Warburg’s fame is primarily as the father of Otto Warburg who won the 1931 Nobel prize in physiology. On page 314 Warburg reports on photochemical processes in BrH gases. In an obscure and very indirect way, I am an academic descendant of Emil Warburg. One of his students was Robert Pohl who was a famous early researcher in solid state physics, sometimes called the “father of solid state physics”. Pohl was at the physics department in Göttingen in the 1920’s along with Born and Franck during the golden age of quantum mechanics. Robert Pohl’s son, Robert Otto Pohl, was my professor when I was a sophomore at Cornell University in 1978 for the course on introductory electromagnetism using a textbook by the Nobel laureate Edward Purcell, a quirky volume of the Berkeley Series of physics textbooks. This makes Emil Warburg my professor’s father’s professor.

Papers in the 1916 Vol. 1 of the Prussian Academy of Sciences

Schulze, Alt– und Neuindisches

Orth, Zur Frage nach den Beziehungen des Alkoholismus zur Tuberkulose

Schulze, Die Erhabunen auf der Lippin- und Wangenschleimhaut der Säugetiere

von Wilamwitz-Moellendorff, Die Samie des Menandros

Engler, Bericht über das >>Pflanzenreich<<

von Harnack, Bericht über die Ausgabe der griechischen Kirchenväter der dri ersten Jahrhunderte

Meinecke, Germanischer und romanischer Geist im Wandel der deutschen Geschichtsauffassung

Rubens und Hettner, Das langwellige Wasserdampfspektrum und seine Deutung durch die Quantentheorie

Einstein, Eine neue formale Deutung der Maxwellschen Feldgleichungen der Electrodynamic

Schwarschild, Über das Gravitationsfeld eines Massenpunktes nach der Einsteinschen Theorie

Helmreich, Handschriftliche Verbesserungen zu dem Hippokratesglossar des Galen

Prager, Über die Periode des veränderlichen Sterns RR Lyrae

Holl, Die Zeitfolge des ersten origenistischen Streits

Lüders, Zu den Upanisads. I. Die Samvargavidya

Warburg, Über den Energieumsatz bei photochemischen Vorgängen in Gasen. VI.

Hellman, Über die ägyptischen Witterungsangaben im Kalender von Claudius Ptolemaeus

Meyer-Lübke, Die Diphthonge im Provenzaslischen

Diels, Über die Schrift Antipocras des Nikolaus von Polen

Müller und Sieg, Maitrisimit und >>Tocharisch<<

Meyer, Ein altirischer Heilsegen

Schwarzschild, Über das Gravitationasfeld einer Kugel aus inkompressibler Flüssigkeit nach der Einsteinschen Theorie

Brauer, Die Verbreitung der Hyracoiden

Correns, Untersuchungen über Geschlechtsbestimmung bei Distelarten

Brahn, Weitere Untersuchungen über Fermente in der Lever von Krebskranken

Erdmann, Methodologische Konsequenzen aus der Theorie der Abstraktion

Bang, Studien zur vergleichenden Grammatik der Türksprachen. I.

Frobenius, Über die Kompositionsreihe einer Gruppe

Schwarzschild, Zur Quantenhypothese

Fischer und Bergmann, Über neue Galloylderivate des Traubenzuckers und ihren Vergleich mit der Chebulinsäure

Schuchhardt, Der starke Wall und die breite, zuweilen erhöhte Berme bei frügeschichtlichen Burgen in Norddeutschland

Born, Über anisotrope Flüssigkeiten

Planck, Über die absolute Entropie einatomiger Körper

Haberlandt, Blattepidermis und Lichtperzeption

Einstein, Näherungsweise Integration der Feldgleichungen der Gravitation

Lüders, Die Saubhikas. Ein Beitrag zur Gecschichte des indischen Dramas

July 5, 2019July 7, 2019 by David D. Nolte

The Three-Body Problem, Longitude at Sea, and Lagrange’s Points

When Newton developed his theory of universal gravitation, the first problem he tackled was Kepler’s elliptical orbits of the planets around the sun, and he succeeded beyond compare. The second problem he tackled was of more practical importance than the tracks of distant planets, namely the path of the Earth’s own moon, and he was never satisfied.

Newton’s Principia and the Problem of Longitude

Measuring the precise location of the moon at very exact times against the backdrop of the celestial sphere was a method for ships at sea to find their longitude. Yet the moon’s orbit around the Earth is irregular, and Newton recognized that because gravity was universal, every planet exerted a force on each other, and the moon was being tugged upon by the sun as well as by the Earth.

Newton’s attempt with the Moon was his last significant scientific endeavor

In Propositions 65 and 66 of Book 1 of the Principia, Newton applied his new theory to attempt to pin down the moon’s trajectory, but was thwarted by the complexity of the three bodies of the Earth-Moon-Sun system. For instance, the force of the sun on the moon is greater than the force of the Earth on the moon, which raised the question of why the moon continued to circle the Earth rather than being pulled away to the sun. Newton correctly recognized that it was the Earth-moon system that was in orbit around the sun, and hence the sun caused only a perturbation on the Moon’s orbit around the Earth. However, because the Moon’s orbit is approximately elliptical, the Sun’s pull on the Moon is not constant as it swings around in its orbit, and Newton only succeeded in making estimates of the perturbation.

Unsatisfied with his results in the Principia, Newton tried again, beginning in the summer of 1694, but the problem was to too great even for him. In 1702 he published his research, as far as he was able to take it, on the orbital trajectory of the Moon. He could pin down the motion to within 10 arc minutes, but this was not accurate enough for reliable navigation, representing an uncertainty of over 10 kilometers at sea—error enough to run aground at night on unseen shoals. Newton’s attempt with the Moon was his last significant scientific endeavor, and afterwards this great scientist withdrew into administrative activities and other occult interests that consumed his remaining time.

Race for the Moon

The importance of the Moon for navigation was too pressing to ignore, and in the 1740’s a heated competition to be the first to pin down the Moon’s motion developed among three of the leading mathematicians of the day—Leonhard Euler, Jean Le Rond D’Alembert and Alexis Clairaut—who began attacking the lunar problem and each other [1]. Euler in 1736 had published the first textbook on dynamics that used the calculus, and Clairaut had recently returned from Lapland with Maupertuis. D’Alembert, for his part, had placed dynamics on a firm physical foundation with his 1743 textbook. Euler was first to publish with a lunar table in 1746, but there remained problems in his theory that frustrated his attempt at attaining the required level of accuracy.

At nearly the same time Clairaut and D’Alembert revisited Newton’s foiled lunar theory and found additional terms in the perturbation expansion that Newton had neglected. They rushed to beat each other into print, but Clairaut was distracted by a prize competition for the most accurate lunar theory, announced by the Russian Academy of Sciences and refereed by Euler, while D’Alembert ignored the competition, certain that Euler would rule in favor of Clairaut. Clairaut won the prize, but D’Alembert beat him into print.

The rivalry over the moon did not end there. Clairaut continued to improve lunar tables by combining theory and observation, while D’Alembert remained more purely theoretical. A growing animosity between Clairaut and D’Alembert spilled out into the public eye and became a daily topic of conversation in the Paris salons. The difference in their approaches matched the difference in their personalities, with the more flamboyant and pragmatic Clairaut disdaining the purist approach and philosophy of D’Alembert. Clairaut succeeded in publishing improved lunar theory and tables in 1752, followed by Euler in 1753, while D’Alembert’s interests were drawn away towards his activities for Diderot’s Encyclopedia.

The battle over the Moon in the late 1740’s was carried out on the battlefield of perturbation theory. To lowest order, the orbit of the Moon around the Earth is a Keplerian ellipse, and the effect of the Sun, though creating problems for the use of the Moon for navigation, produces only a small modification—a perturbation—of its overall motion. Within a decade or two, the accuracy of perturbation theory calculations, combined with empirical observations, had improved to the point that accurate lunar tables had sufficient accuracy to allow ships to locate their longitude to within a kilometer at sea. The most accurate tables were made by Tobias Mayer, who was awarded posthumously a prize of 3000 pounds by the British Parliament in 1763 for the determination of longitude at sea. Euler received 300 pounds for helping Mayer with his calculations. This was the same prize that was coveted by the famous clockmaker John Harrison and depicted so brilliantly in Dava Sobel’s Longitude (1995).

Lagrange Points

Several years later in 1772 Lagrange discovered an interesting special solution to the planar three-body problem with three massive points each executing an elliptic orbit around the center of mass of the system, but configured such that their positions always coincided with the vertices of an equilateral triangle [2]. He found a more important special solution in the restricted three-body problem that emerged when a massless third body was found to have two stable equilibrium points in the combined gravitational potentials of two massive bodies. These two stable equilibrium points are known as the L4 and L5 Lagrange points. Small objects can orbit these points, and in the Sun-Jupiter system these points are occupied by the Trojan asteroids. Similarly stable Lagrange points exist in the Earth-Moon system where space stations or satellites could be parked.

For the special case of circular orbits of constant angular frequency w, the motion of the third mass is described by the Lagrangian

where the potential is time dependent because of the motion of the two larger masses. Lagrange approached the problem by adopting a rotating reference frame in which the two larger masses m₁ and m₂ move along the stationary line defined by their centers. The Lagrangian in the rotating frame is

where the effective potential is now time independent. The first term in the effective potential is the Coriolis effect and the second is the centrifugal term.

Fig. Effective potential for the planar three-body problem and the five Lagrange points where the gradient of the effective potential equals zero. The Lagrange points are displayed on a horizontal cross section of the potential energy shown with equipotential lines. The large circle in the center is the Sun. The smaller circle on the right is a Jupiter-like planet. The points L1, L2 and L3 are each saddle-point equilibria positions and hence unstable. The points L4 and L5 are stable points that can collect small masses that orbit these Lagrange points.

The effective potential is shown in the figure for m₃ = 10m₂. There are five locations where the gradient of the effective potential equals zero. The point L1 is the equilibrium position between the two larger masses. The points L2 and L3 are at positions where the centrifugal force balances the gravitational attraction to the two larger masses. These are also the points that separate local orbits around a single mass from global orbits that orbit the two-body system. The last two Lagrange points at L4 and L5 are at one of the vertices of an equilateral triangle, with the other two vertices at the positions of the larger masses. The first three Lagrange points are saddle points. The last two are at maxima of the effective potential.

L1, lies between Earth and the sun at about 1 million miles from Earth. L1 gets an uninterrupted view of the sun, and is currently occupied by the Solar and Heliospheric Observatory (SOHO) and the Deep Space Climate Observatory. L2 also lies a million miles from Earth, but in the opposite direction of the sun. At this point, with the Earth, moon and sun behind it, a spacecraft can get a clear view of deep space. NASA’s Wilkinson Microwave Anisotropy Probe (WMAP) is currently at this spot measuring the cosmic background radiation left over from the Big Bang. The James Webb Space Telescope will move into this region in 2021.

[1] Gutzwiller, M. C. (1998). “Moon-Earth-Sun: The oldest three-body problem.” Reviews of Modern Physics 70(2): 589-639.

[2] J.L. Lagrange Essai sur le problème des trois corps, 1772, Oeuvres tome 6

June 16, 2019December 1, 2019 by David D. Nolte

Vladimir Arnold’s Cat Map

The 1960’s are known as a time of cultural revolution, but perhaps less known was the revolution that occurred in the science of dynamics. Three towering figures of that revolution were Stephen Smale (1930 – ) at Berkeley, Andrey Kolmogorov (1903 – 1987) in Moscow and his student Vladimir Arnold (1937 – 2010). Arnold was only 20 years old in 1957 when he solved Hilbert’s thirteenth problem (that any continuous function of several variables can be constructed with a finite number of two-variable functions). Only a few years later his work on the problem of small denominators in dynamical systems provided the finishing touches on the long elusive explanation of the stability of the solar system (the problem for which Poincaré won the King Oscar Prize in mathematics in 1889 when he discovered chaotic dynamics ). This theory is known as KAM-theory, using the first initials of the names of Kolmogorov, Arnold and Moser [1]. Building on his breakthrough in celestial mechanics, Arnold’s work through the 1960’s remade the theory of Hamiltonian systems, creating a shift in perspective that has permanently altered how physicists look at dynamical systems.

Hamiltonian Physics on a Torus

Traditionally, Hamiltonian physics is associated with systems of inertial objects that conserve the sum of kinetic and potential energy, in other words, conservative non-dissipative systems. But a modern view (after Arnold) of Hamiltonian systems sees them as hyperdimensional mathematical mappings that conserve volume. The space that these mappings inhabit is phase space, and the conservation of phase-space volume is known as Liouville’s Theorem [2]. The geometry of phase space is called symplectic geometry, and the universal position that symplectic geometry now holds in the physics of Hamiltonian mechanics is largely due to Arnold’s textbook Mathematical Methods of Classical Mechanics (1974, English translation 1978) [3]. Arnold’s famous quote from that text is “Hamiltonian mechanics is geometry in phase space”.

One of the striking aspects of this textbook is the reduction of phase-space geometry to the geometry of a hyperdimensional torus for a large number of Hamiltonian systems. If there are as many conserved quantities as there are degrees of freedom in a Hamiltonian system, then the system is called “integrable” (because you can integrated the equations of motion to find a constant of the motion). Then it is possible to map the physics onto a hyperdimensional torus through the transformation of dynamical coordinates into what are known as “action-angle” coordinates [4]. Each independent angle has an associated action that is conserved during the motion of the system. The periodicity of the dynamical angle coordinate makes it possible to identify it with the angular coordinate of a multi-dimensional torus. Therefore, every integrable Hamiltonian system can be mapped to motion on a multi-dimensional torus (one dimension for each degree of freedom of the system).

Actually, integrable Hamiltonian systems are among the most boring dynamical systems you can imagine. They literally just go in circles (around the torus). But as soon as you add a small perturbation that cannot be integrated they produce some of the most complex and beautiful patterns of all dynamical systems. It was Arnold’s focus on motions on a torus, and perturbations that shift the dynamics off the torus, that led him to propose a simple mapping that captured the essence of Hamiltonian chaos.

The Arnold Cat Map

Motion on a two-dimensional torus is defined by two angles, and trajectories on a two-dimensional torus are simple helixes. If the periodicities of the motion in the two angles have an integer ratio, the helix repeats itself. However, if the ratio of periods (also known as the winding number) is irrational, then the helix never repeats and passes arbitrarily closely to any point on the surface of the torus. This last case leads to an “ergodic” system, which is a term introduced by Boltzmann to describe a physical system whose trajectory fills phase space. The behavior of a helix for rational or irrational winding number is not terribly interesting. It’s just an orbit going in circles like an integrable Hamiltonian system. The helix can never even cross itself.

However, if you could add a new dimension to the torus (or add a new degree of freedom to the dynamical system), then the helix could pass over or under itself by moving into the new dimension. By weaving around itself, a trajectory can become chaotic, and the set of many trajectories can become as mixed up as a bowl of spaghetti. This can be a little hard to visualize, especially in higher dimensions, but Arnold thought of a very simple mathematical mapping that captures the essential motion on a torus, preserving volume as required for a Hamiltonian system, but with the ability for regions to become all mixed up, just like trajectories in a nonintegrable Hamiltonian system.

A unit square is isomorphic to a two-dimensional torus. This means that there is a one-to-one mapping of each point on the unit square to each point on the surface of a torus. Imagine taking a sheet of paper and forming a tube out of it. One of the dimensions of the sheet of paper is now an angle coordinate that is cyclic, going around the circumference of the tube. Now if the sheet of paper is flexible (like it is made of thin rubber) you can bend the tube around and connect the top of the tube with the bottom, like a bicycle inner tube. The other dimension of the sheet of paper is now also an angle coordinate that is cyclic. In this way a flat sheet is converted (with some bending) into a torus.

Arnold’s key idea was to create a transformation that takes the torus into itself, preserving volume, yet including the ability for regions to pass around each other. Arnold accomplished this with the simple map

where the modulus 1 takes the unit square into itself. This transformation can also be expressed as a matrix

followed by taking modulus 1. The transformation matrix is called a Floquet matrix, and the determinant of the matrix is equal to unity, which ensures that volume is conserved.

Arnold decided to illustrate this mapping by using a crude image of the face of a cat (See Fig. 1). Successive applications of the transformation stretch and shear the cat, which is then folded back into the unit square. The stretching and folding preserve the volume, but the image becomes all mixed up, just like mixing in a chaotic Hamiltonian system, or like an immiscible dye in water that is stirred.

Fig. 1 Arnold’s illustration of his cat map from pg. 6 of V. I. Arnold and A. Avez, *Ergodic Problems of Classical Mechanics* (Benjamin, 1968) [5]

Fig. 2 Arnold Cat Map operation is an iterated succession of stretching with shear of a unit square, and translation back to the unit square. The mapping preserves and mixes areas, and is invertible.

Recurrence

When the transformation matrix is applied to continuous values, it produces a continuous range of transformed values that become thinner and thinner until the unit square is uniformly mixed. However, if the unit square is discrete, made up of pixels, then something very different happens (see Fig. 3). The image of the cat in this case is composed of a 50×50 array of pixels. For early iterations, the image becomes stretched and mixed, but at iteration 50 there are 4 low-resolution upside-down versions of the cat, and at iteration 75 the cat fully reforms, but is upside-down. Continuing on, the cat eventually reappears fully reformed and upright at iteration 150. Therefore, the discrete case displays a recurrence and the mapping is periodic. Calculating the period of the cat map on lattices can lead to interesting patterns, especially if the lattice is composed of prime numbers [6].

The Cat Map and the Golden Mean

The golden mean, or the golden ratio, 1.618033988749895 is never far away when working with Hamiltonian systems. Because the golden mean is the “most irrational” of all irrational numbers, it plays an essential role in KAM theory on the stability of the solar system. In the case of Arnold’s cat map, it pops up its head in several ways. For instance, the transformation matrix has eigenvalues

with the remarkable property that

which guarantees conservation of area.

Selected V. I. Arnold Publications

Arnold, V. I. “FUNCTIONS OF 3 VARIABLES.” Doklady Akademii Nauk Sssr 114(4): 679-681. (1957)

Arnold, V. I. “GENERATION OF QUASI-PERIODIC MOTION FROM A FAMILY OF PERIODIC MOTIONS.” Doklady Akademii Nauk Sssr 138(1): 13-&. (1961)

Arnold, V. I. “STABILITY OF EQUILIBRIUM POSITION OF A HAMILTONIAN SYSTEM OF ORDINARY DIFFERENTIAL EQUATIONS IN GENERAL ELLIPTIC CASE.” Doklady Akademii Nauk Sssr 137(2): 255-&. (1961)

Arnold, V. I. “BEHAVIOUR OF AN ADIABATIC INVARIANT WHEN HAMILTONS FUNCTION IS UNDERGOING A SLOW PERIODIC VARIATION.” Doklady Akademii Nauk Sssr 142(4): 758-&. (1962)

Arnold, V. I. “CLASSICAL THEORY OF PERTURBATIONS AND PROBLEM OF STABILITY OF PLANETARY SYSTEMS.” Doklady Akademii Nauk Sssr 145(3): 487-&. (1962)

Arnold, V. I. “BEHAVIOUR OF AN ADIABATIC INVARIANT WHEN HAMILTONS FUNCTION IS UNDERGOING A SLOW PERIODIC VARIATION.” Doklady Akademii Nauk Sssr 142(4): 758-&. (1962)

Arnold, V. I. and Y. G. Sinai. “SMALL PERTURBATIONS OF AUTHOMORPHISMS OF A TORE.” Doklady Akademii Nauk Sssr 144(4): 695-&. (1962)

Arnold, V. I. “Small denominators and problems of the stability of motion in classical and celestial mechanics (in Russian).” Usp. Mat. Nauk. 18: 91-192. (1963)

Arnold, V. I. and A. L. Krylov. “UNIFORM DISTRIBUTION OF POINTS ON A SPHERE AND SOME ERGODIC PROPERTIES OF SOLUTIONS TO LINEAR ORDINARY DIFFERENTIAL EQUATIONS IN COMPLEX REGION.” Doklady Akademii Nauk Sssr 148(1): 9-&. (1963)

Arnold, V. I. “INSTABILITY OF DYNAMICAL SYSTEMS WITH MANY DEGREES OF FREEDOM.” Doklady Akademii Nauk Sssr 156(1): 9-&. (1964)

Arnold, V. “SUR UNE PROPRIETE TOPOLOGIQUE DES APPLICATIONS GLOBALEMENT CANONIQUES DE LA MECANIQUE CLASSIQUE.” Comptes Rendus Hebdomadaires Des Seances De L Academie Des Sciences 261(19): 3719-&. (1965)

Arnold, V. I. “APPLICABILITY CONDITIONS AND ERROR ESTIMATION BY AVERAGING FOR SYSTEMS WHICH GO THROUGH RESONANCES IN COURSE OF EVOLUTION.” Doklady Akademii Nauk Sssr 161(1): 9-&. (1965)

Bibliography

[1] Dumas, H. S. The KAM Story: A friendly introduction to the content, history and significance of Classical Kolmogorov-Arnold-Moser Theory, World Scientific. (2014)

[2] See Chapter 6, “The Tangled Tale of Phase Space” in Galileo Unbound (D. D. Nolte, Oxford University Press, 2018)

[3] V. I. Arnold, Mathematical Methods of Classical Mechanics (Nauk 1974, English translation Springer 1978)

[4] See Chapter 3, “Hamiltonian Dynamics and Phase Space” in Introduction to Modern Dynamics, 2nd ed. (D. D. Nolte, Oxford University Press, 2019)

[5] V. I. Arnold and A. Avez, Ergodic Problems of Classical Mechanics (Benjamin, 1968)

[6] Gaspari, G. “THE ARNOLD CAT MAP ON PRIME LATTICES.” Physica D-Nonlinear Phenomena 73(4): 352-372. (1994)

December 10, 2018January 5, 2022 by David D. Nolte

The Wonderful World of Hamiltonian Maps

Hamiltonian systems are freaks of nature. Unlike the everyday world we experience that is full of dissipation and inefficiency, Hamiltonian systems live in a world free of loss. Despite how rare this situation is for us, this unnatural state happens commonly in two extremes: orbital mechanics and quantum mechanics. In the case of orbital mechanics, dissipation does exist, most commonly in tidal effects, but effects of dissipation in the orbits of moons and planets takes eons to accumulate, making these systems effectively free of dissipation on shorter time scales. Quantum mechanics is strictly free of dissipation, but there is a strong caveat: ALL quantum states need to be included in the quantum description. This includes the coupling of discrete quantum states to their environment. Although it is possible to isolate quantum systems to a large degree, it is never possible to isolate them completely, and they do interact with the quantum states of their environment, if even just the black-body radiation from their container, and even if that container is cooled to milliKelvins. Such interactions involve so many degrees of freedom, that it all behaves like dissipation. The origin of quantum decoherence, which poses such a challenge for practical quantum computers, is the entanglement of quantum systems with their environment.

Liouville’s theorem plays a central role in the explanation of the entropy and ergodic properties of ideal gases, as well as in Hamiltonian chaos.

Liouville’s Theorem and Phase Space

A middle ground of practically ideal Hamiltonian mechanics can be found in the dynamics of ideal gases. This is the arena where Maxwell and Boltzmann first developed their theories of statistical mechanics using Hamiltonian physics to describe the large numbers of particles. Boltzmann applied a result he learned from Jacobi’s Principle of the Last Multiplier to show that a volume of phase space is conserved despite the large number of degrees of freedom and the large number of collisions that take place. This was the first derivation of what is today known as Liouville’s theorem.

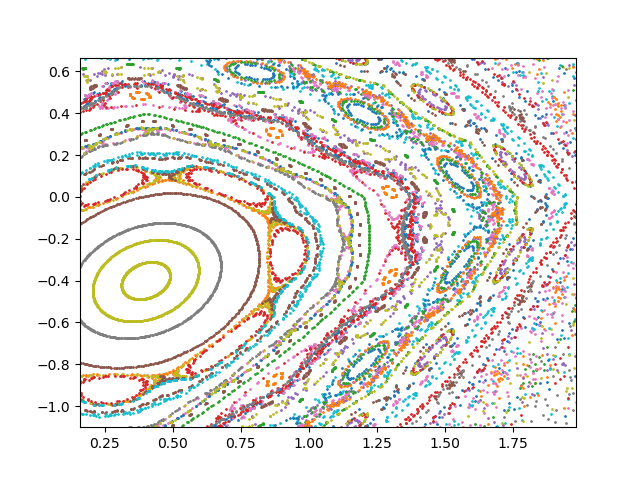

Close-up of the Lozi Map with B = -1 and C = 0.5.

In 1838 Joseph Liouville, a pure mathematician, was interested in classes of solutions of differential equations. In a short paper, he showed that for one class of differential equation one could define a property that remained invariant under the time evolution of the system. This purely mathematical paper by Liouville was expanded upon by Jacobi, who was a major commentator on Hamilton’s new theory of dynamics, contributing much of the mathematical structure that we associate today with Hamiltonian mechanics. Jacobi recognized that Hamilton’s equations were of the same class as the ones studied by Liouville, and the conserved property was a product of differentials. In the mid-1800’s the language of multidimensional spaces had yet to be invented, so Jacobi did not recognize the conserved quantity as a volume element, nor the space within which the dynamics occurred as a space. Boltzmann recognized both, and he was the first to establish the principle of conservation of phase space volume. He named this principle after Liouville, even though it was actually Boltzmann himself who found its natural place within the physics of Hamiltonian systems [1].

Liouville’s theorem plays a central role in the explanation of the entropy of ideal gases, as well as in Hamiltonian chaos. In a system with numerous degrees of freedom, a small volume of initial conditions is stretched and folded by the dynamical equations as the system evolves. The stretching and folding is like what happens to dough in a bakers hands. The volume of the dough never changes, but after a long time, a small spot of food coloring will eventually be as close to any part of the dough as you wish. This analogy is part of the motivation for ergodic systems, and this kind of mixing is characteristic of Hamiltonian systems, in which trajectories can diffuse throughout the phase space volume … usually.

Interestingly, when the number of degrees of freedom are not so large, there is a middle ground of Hamiltonian systems for which some initial conditions can lead to chaotic trajectories, while other initial conditions can produce completely regular behavior. For the right kind of systems, the regular behavior can hem in the irregular behavior, restricting it to finite regions. This was a major finding of the KAM theory [2], named after Kolmogorov, Arnold and Moser, which helped explain the regions of regular motion separating regions of chaotic motion as illustrated in Chirikov’s Standard Map.

Discrete Maps

Hamilton’s equations are ordinary continuous differential equations that define a Hamiltonian flow in phase space. These equations can be solved using standard techniques, such as Runge-Kutta. However, a much simpler approach for exploring Hamiltonian chaos uses discrete maps that represent the Poincaré first-return map, also known as the Poincaré section. Testing that a discrete map satisfies Liouville’s theorem is as simple as checking that the determinant of the Floquet matrix is equal to unity. When the dynamics are represented in a Poincaré plane, these maps are called area-preserving maps.

There are many famous examples of area-preserving maps in the plane. The Chirikov Standard Map is one of the best known and is often used to illustrate KAM theory. It is a discrete representation of a kicked rotater, while a kicked harmonic oscillator leads to the Web Map. The Henon Map was developed to explain the orbits of stars in galaxies. The Lozi Map is a version of the Henon map that is more accessible analytically. And the Cat Map was devised by Vladimir Arnold to illustrate what is today called Arnold Diffusion. All of these maps display classic signatures of (low-dimensional) Hamiltonian chaos with periodic orbits hemming in regions of chaotic orbits.

Chirikov Standard Map	Kicked rotater
Web Map	Kicked harmonic oscillator
Henon Map	Stellar trajectories in galaxies
Lozi Map	Simplified Henon map
Cat Map	Arnold Diffusion

Table: Common examples of area-preserving maps.

Lozi Map

My favorite area-preserving discrete map is the Lozi Map. I first stumbled on this map at the very back of Steven Strogatz’ wonderful book on nonlinear dynamics [3]. It’s one of the last exercises of the last chapter. The map is particularly simple, but it leads to rich dynamics, both regular and chaotic. The map equations are

which is area-preserving when |B| = 1. The constant C can be varied, but the choice C = 0.5 works nicely, and B = -1 produces a beautiful nested structure, as shown in the figure.

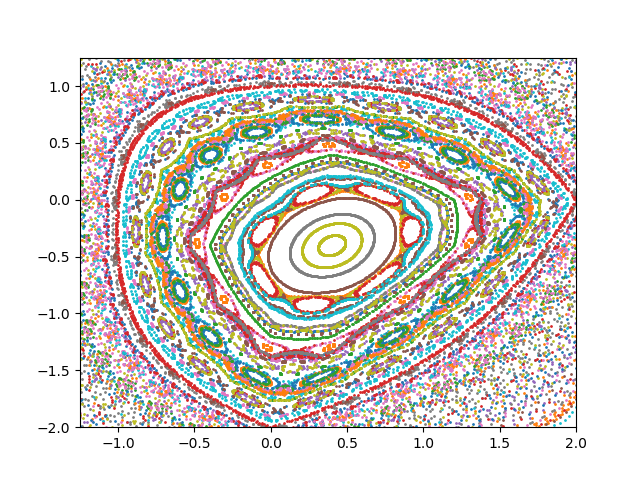

Iterated Lozi map for B = -1 and C = 0.5. Each color is a distinct trajectory. Many regular trajectories exist that corral regions of chaotic trajectories. Trajectories become more chaotic farther away from the center.

Python Code for the Lozi Map

"""
Lozi.py
Created on Wed May  2 16:17:27 2018
@author: nolte
"""
import numpy as np
from scipy import integrate
from matplotlib import pyplot as plt

B = -1
C = 0.5

np.random.seed(2)
plt.figure(1)

for eloop in range(0,100):

    xlast = np.random.normal(0,1,1)
    ylast = np.random.normal(0,1,1)

    xnew = np.zeros(shape=(500,))
    ynew = np.zeros(shape=(500,))
    for loop in range(0,500):
        xnew[loop] = 1 + ylast - C*abs(xlast)
        ynew[loop] = B*xlast
        xlast = xnew[loop]
        ylast = ynew[loop]

    plt.plot(np.real(xnew),np.real(ynew),'o',ms=1)
    plt.xlim(xmin=-1.25,xmax=2)
    plt.ylim(ymin=-2,ymax=1.25)

plt.savefig('Lozi')

References:

[1] D. D. Nolte, “The Tangled Tale of Phase Space”, Chapter 6 in Galileo Unbound: A Path Across Life, the Universe and Everything (Oxford University Press, 2018)

[2] H. S. Dumas, The KAM Story: A Friendly Introduction to the Content, History, and Significance of Classical Kolmogorov-Arnold-Moser Theory (World Scientific, 2014)

[3] S. H. Strogatz, Nonlinear Dynamics and Chaos (WestView Press, 1994)

October 27, 2018December 4, 2022 by David D. Nolte

How to Weave a Tapestry from Hamiltonian Chaos

While virtually everyone recognizes the famous Lorenz “Butterfly”, the strange attractor that is one of the central icons of chaos theory, in my opinion Hamiltonian chaos generates far more interesting patterns. This is because Hamiltonians conserve phase-space volume, stretching and folding small volumes of initial conditions as they evolve in time, until they span large sections of phase space. Hamiltonian chaos is usually displayed as multi-color Poincaré sections (also known as first-return maps) that are created when a set of single trajectories, each represented by a single color, pierce the Poincaré plane over and over again.

The archetype of all Hamiltonian systems is the harmonic oscillator.

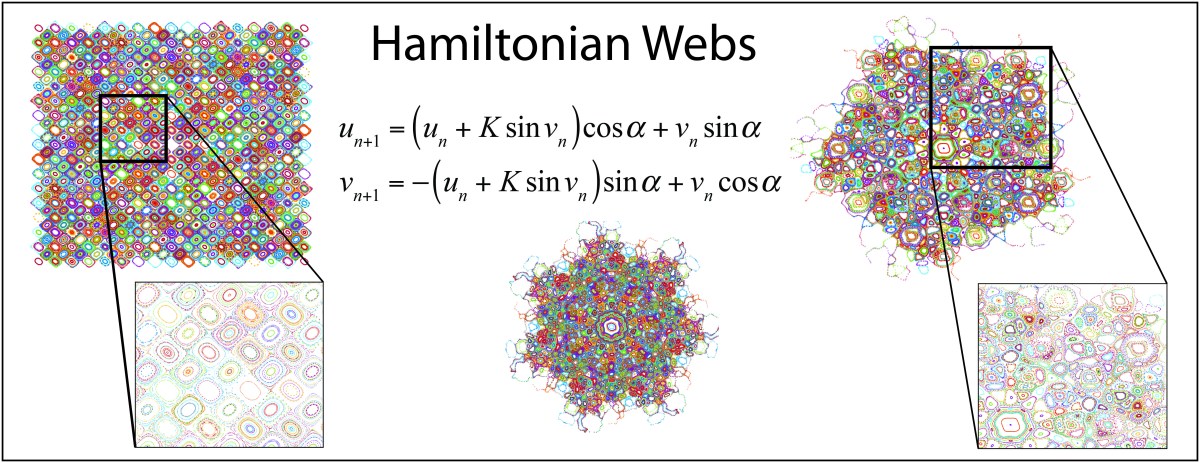

MATLAB Handle Graphics — A Hamiltonian tapestry generated from the Web Map for K = 0.616 and q = 4.

Periodically-Kicked Hamiltonian

The classic Hamiltonian system, perhaps the archetype of all Hamiltonian systems, is the harmonic oscillator. The physics of the harmonic oscillator are taught in the most elementary courses, because every stable system in the world is approximated, to lowest order, as a harmonic oscillator. As the simplest dynamical system, one would think that it held no surprises. But surprisingly, it can create the most beautiful tapestries of color when pulsed periodically and mapped onto the Poincaré plane.

The Hamiltonian of the periodically kicked harmonic oscillator is converted into the Web Map, represented as an iterative mapping as

There can be resonance between the sequence of kicks and the natural oscillator frequency such that α = 2π/q. At these resonances, intricate web patterns emerge. The Web Map produces a web of stochastic layers when plotted on an extended phase plane. The symmetry of the web is controlled by the integer q, and the stochastic layer width is controlled by the perturbation strength K.

See simulations for q = 3, 4, 5, 6 and 7 on Youtube.

Web Map Matlab Program

Iterated maps are easy to implement in code. Here is a simple Matlab code to generate maps of different types. You can play with the coupling constant K and the periodicity q. For small K, the tapestries are mostly regular. But as the coupling K increases, stochastic layers emerge. When q is a small even number, tapestries of regular symmetric are generated. However, when q is an odd small integer, the tapestries turn into quasi-crystals.

% webmap.m

clear
format compact
close all

phi = (1+sqrt(5))/2;

K = phi-1;      % (0.618, 4) (0.618,5) (0.618,7) (1.2, 4)
q = 7;          % 4
alpha = 2*pi/q;
h1 = figure(1);
h1.Position = [177 1 962 804];
dum = set(h1);
axis square

for loop = 1:2000       % 4000

    ulast = 50*rand;   % 50*rand
    vlast = 50*rand;

    for loop = 1:300     % 300

        u(loop) = (ulast + K*sin(vlast))*cos(alpha) + vlast*sin(alpha);
        v(loop) = -(ulast + K*sin(vlast))*sin(alpha) + vlast*cos(alpha);

        ulast = u(loop);
        vlast = v(loop);
    end

    figure(1)
    plot(u,v,'o','MarkerSize',2)
    hold on

end

set(gcf,'Color','white')
%axis([-20 20 -20 20])
axis off

References and Further Reading

D. D. Nolte, Introduction to Modern Dynamics: Chaos, Networks, Space and Time (Oxford, 2015)

G. M. Zaslavsky, Hamiltonian chaos and fractional dynamics. (Oxford, 2005)
